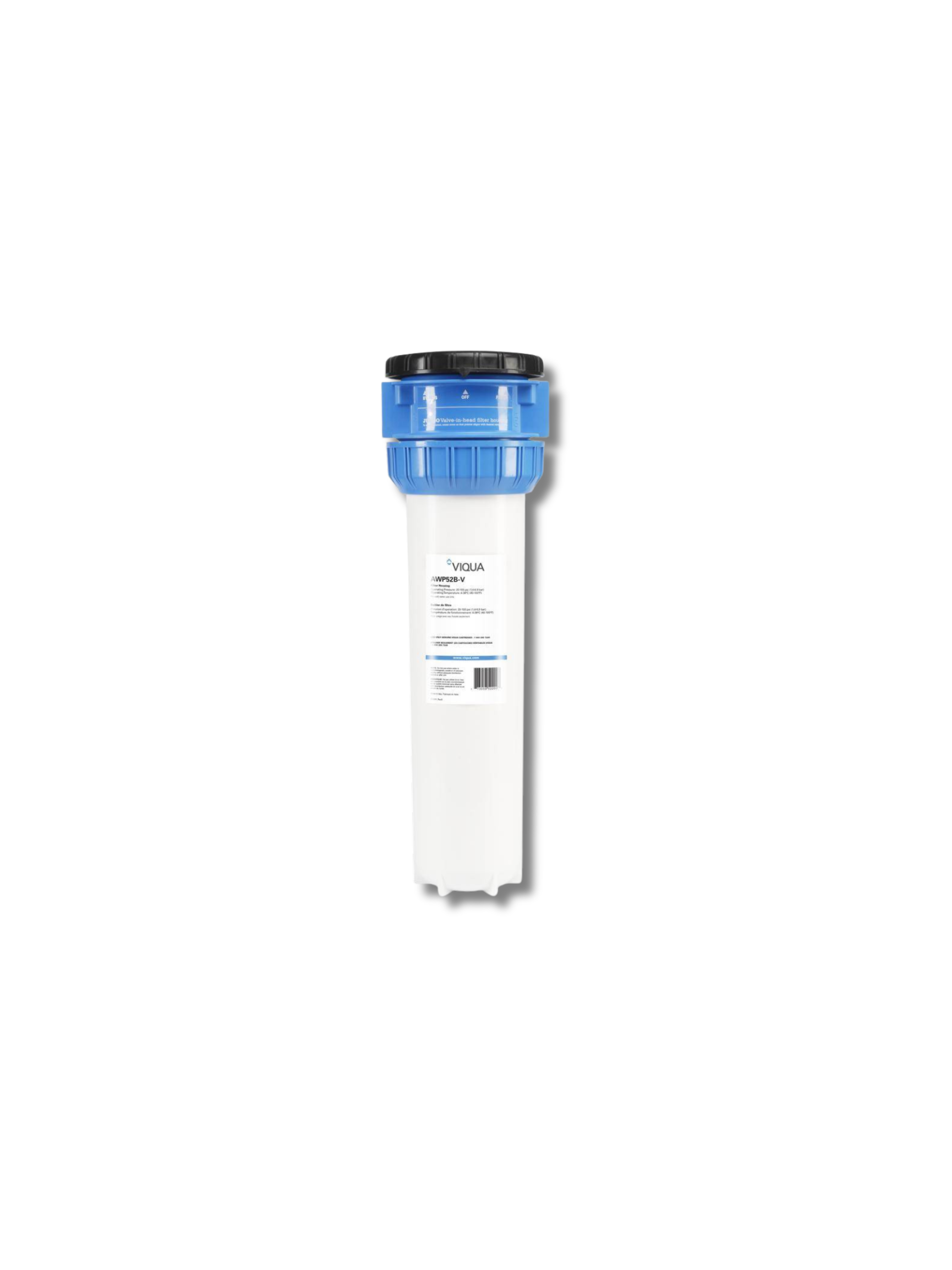

VIQUA AWP52B-V – 20" Big Blue Filter Housing Kit with Valve-in-Head, Bracket & Wrench

The VIQUA AWP52B-V Big Blue Housing Kit is a 20-inch high-capacity housing with a built-in valve-in-head for easy service and maintenance.

Designed for 4.5″ × 20″ cartridges, this model is ideal for large residential or light commercial filtration systems requiring high flow and extended cartridge life.

The integrated valve allows for convenient shut-off and bypass without turning off the main water line, while the included mounting bracket and wrench simplify installation and servicing.

Built from heavy-duty materials and NSF certified for quality, the AWP52B-V delivers dependable performance and user-friendly maintenance.

Key Features

• Valve-in-head design with shut-off and bypass functions

• 20″ Big Blue housing for 4.5″ × 20″ cartridges

• Includes mounting bracket and wrench

• High-capacity design for higher flow and longer cartridge life

• Reinforced O-ring seal for leak-free performance

• Heavy-duty construction for residential or light commercial use

• Compatible with sediment, carbon block, or specialty cartridges

• NSF/ANSI 42 certified for material and structural integrity


Specifications

• Model: AWP52B-V

• Cartridge Size: 4.5″ × 20″

• Connection Size: ¾″ FNPT inlet/outlet

• Maximum Flow Rate: ~15–20 GPM (depending on cartridge type)

• Dimensions: 7.5″ D × 24″ H

• Weight: Approximately 9 lb (4.1 kg)

• Operating Pressure: Cold-water line only

• Max Temperature: Up to 100 °F (38 °C)

• Certification: NSF/ANSI 42
