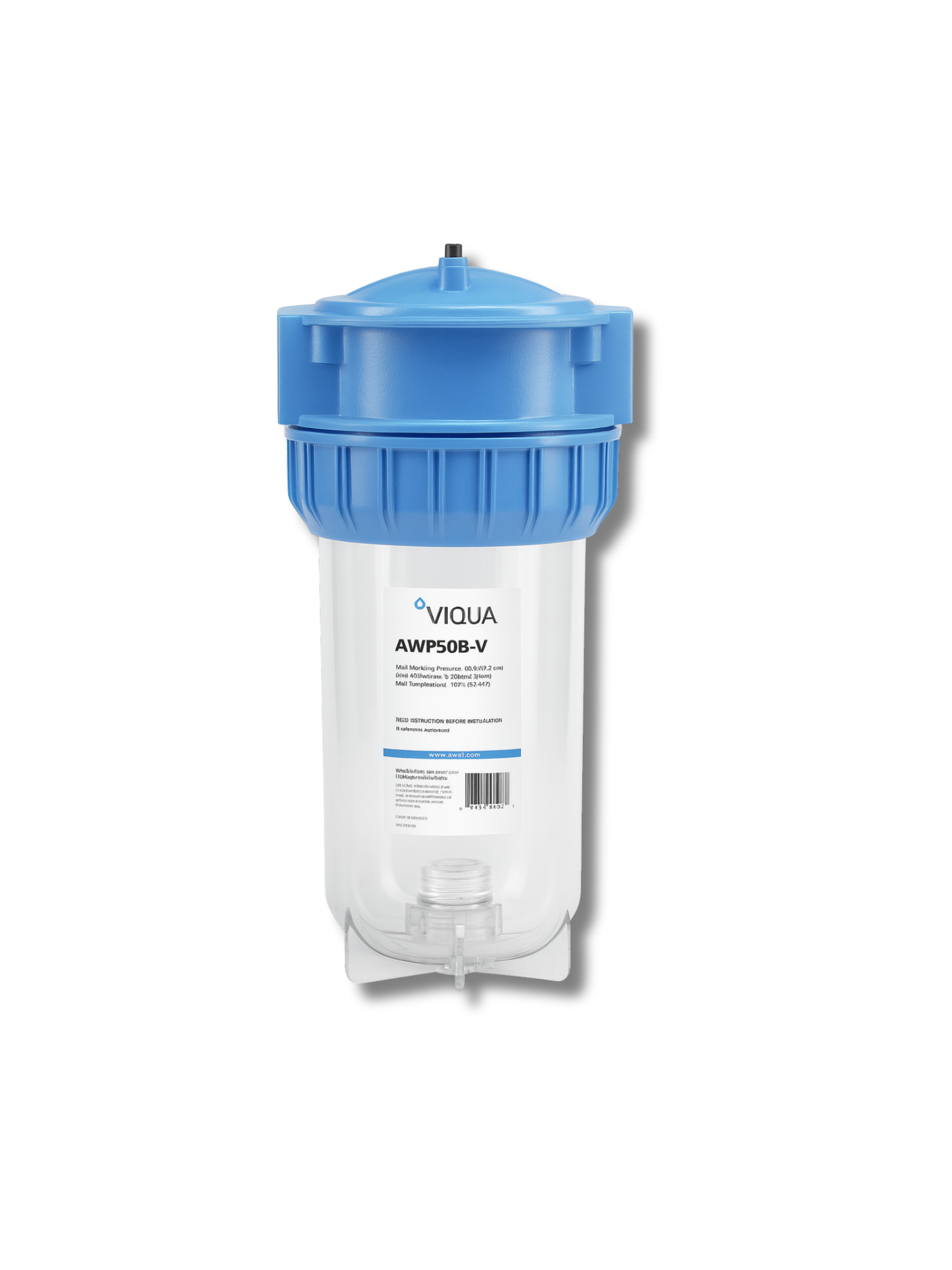

VIQUA AWP50B-V – 10" Big Blue Filter Housing Kit with Valve-in-Head, Bracket & Wrench

The VIQUA AWP50B-V Big Blue Housing Kit is a 10-inch heavy-duty housing with a convenient valve-in-head design, built for 4.5″ × 10″ cartridges.

The integrated valve allows for easy shut-off and bypass during cartridge replacement, eliminating the need to turn off the main water supply.

This kit includes the housing, steel mounting bracket, and wrench for simple setup and maintenance.

Ideal for whole-home or light commercial filtration, the AWP50B-V provides reliable high-flow performance and ease of servicing in one durable package.

Key Features

• Valve-in-head design with shut-off and bypass functionality

• 10″ Big Blue housing for 4.5″ × 10″ cartridges

• Includes mounting bracket and wrench

• Heavy-duty construction for residential or light commercial use

• Reinforced O-ring for secure, leak-free operation

• High flow capacity with minimal pressure drop

• Compatible with sediment, carbon, or specialty cartridges

• NSF/ANSI 42 certified for material and structural integrity


Specifications

• Model: AWP50B-V

• Cartridge Size: 4.5″ × 10″

• Connection Size: ¾″ FNPT inlet/outlet

• Maximum Flow Rate: ~10–15 GPM (depending on cartridge type)

• Dimensions: 7.5″ D × 14″ H

• Weight: Approximately 7 lb (3.2 kg)

• Operating Pressure: Cold-water line only

• Max Temperature: Up to 100 °F (38 °C)

• Certification: NSF/ANSI 42
