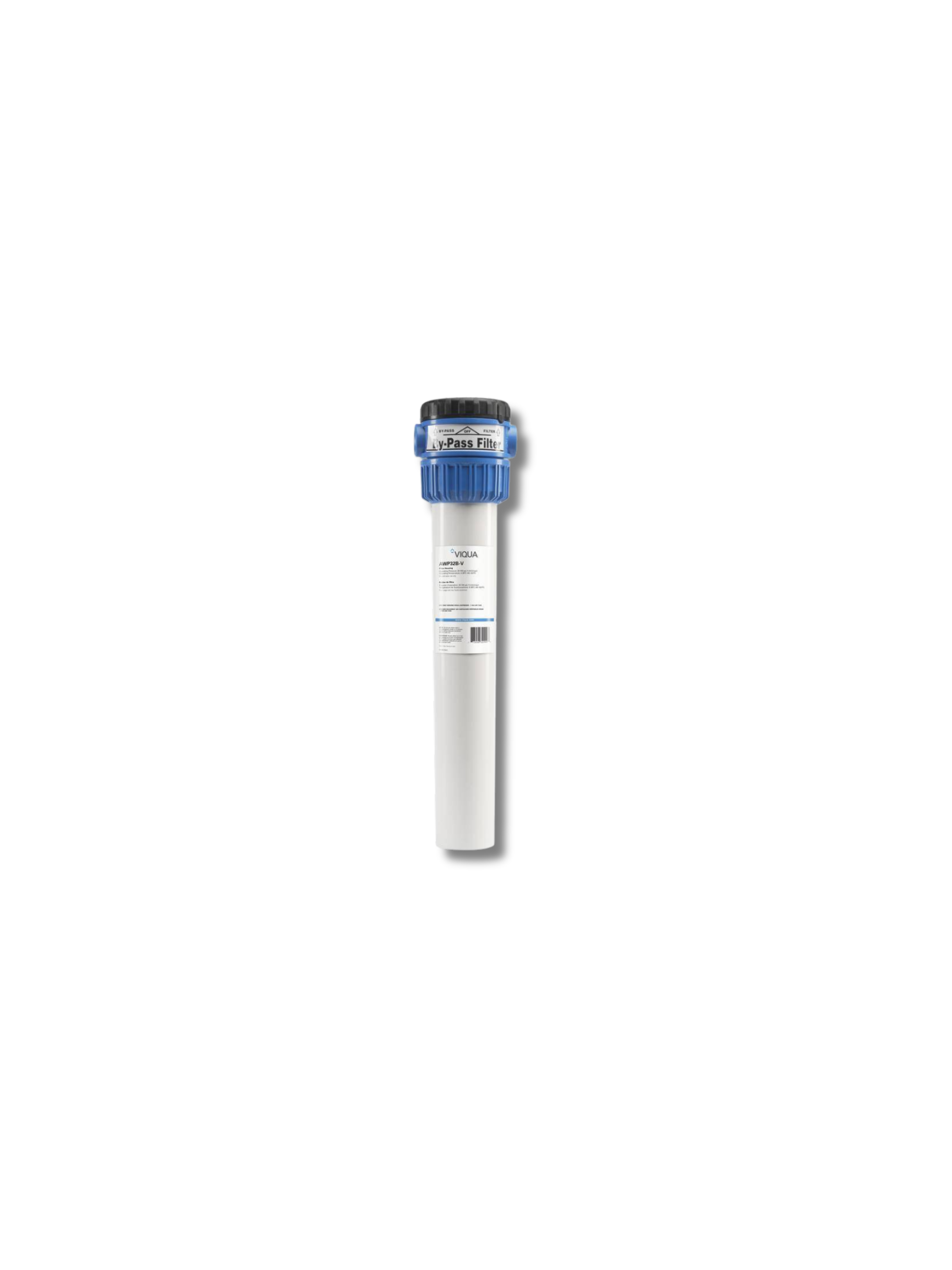

VIQUA AWP32B-VKP – 20" Slim Filter Housing with Valve & Pressure Relief

The VIQUA AWP32B-VKP Slim Housing is a 20-inch, high-quality filter housing designed for use with standard 2.5″ × 20″ cartridges.

It offers the same compact, slim-line body as the AWP32B-V but includes a reinforced mounting bracket and pressure relief button for easier installation and maintenance.

This housing is ideal for point-of-use or small point-of-entry applications, providing dependable filtration for sediment, carbon, or specialty filter media.

Its robust construction ensures long-term durability and consistent performance under typical residential water pressure conditions.

Key Features

• Slim 20″ housing for standard 2.5″ × 20″ cartridges

• Includes mounting bracket and pressure relief button

• Compact and lightweight design for easy installation

• Suitable for sediment, carbon, or specialty cartridges

• Reinforced O-ring seal for leak-free operation

• Durable construction rated for high-pressure service

• NSF/ANSI 42 certified for material and structural integrity


Specifications

• Model: AWP32B-VKP

• Cartridge Size: 2.5″ × 20″

• Connection Size: ¾″ FNPT inlet/outlet

• Maximum Flow Rate: ~6–8 GPM (depending on cartridge type)

• Dimensions: 4.5″ D × 22.5″ L

• Weight: Approximately 5 lb (2.3 kg)

• Operating Pressure: Cold-water line only

• Max Temperature: Up to 100 °F (38 °C)

• Certification: NSF/ANSI 42
