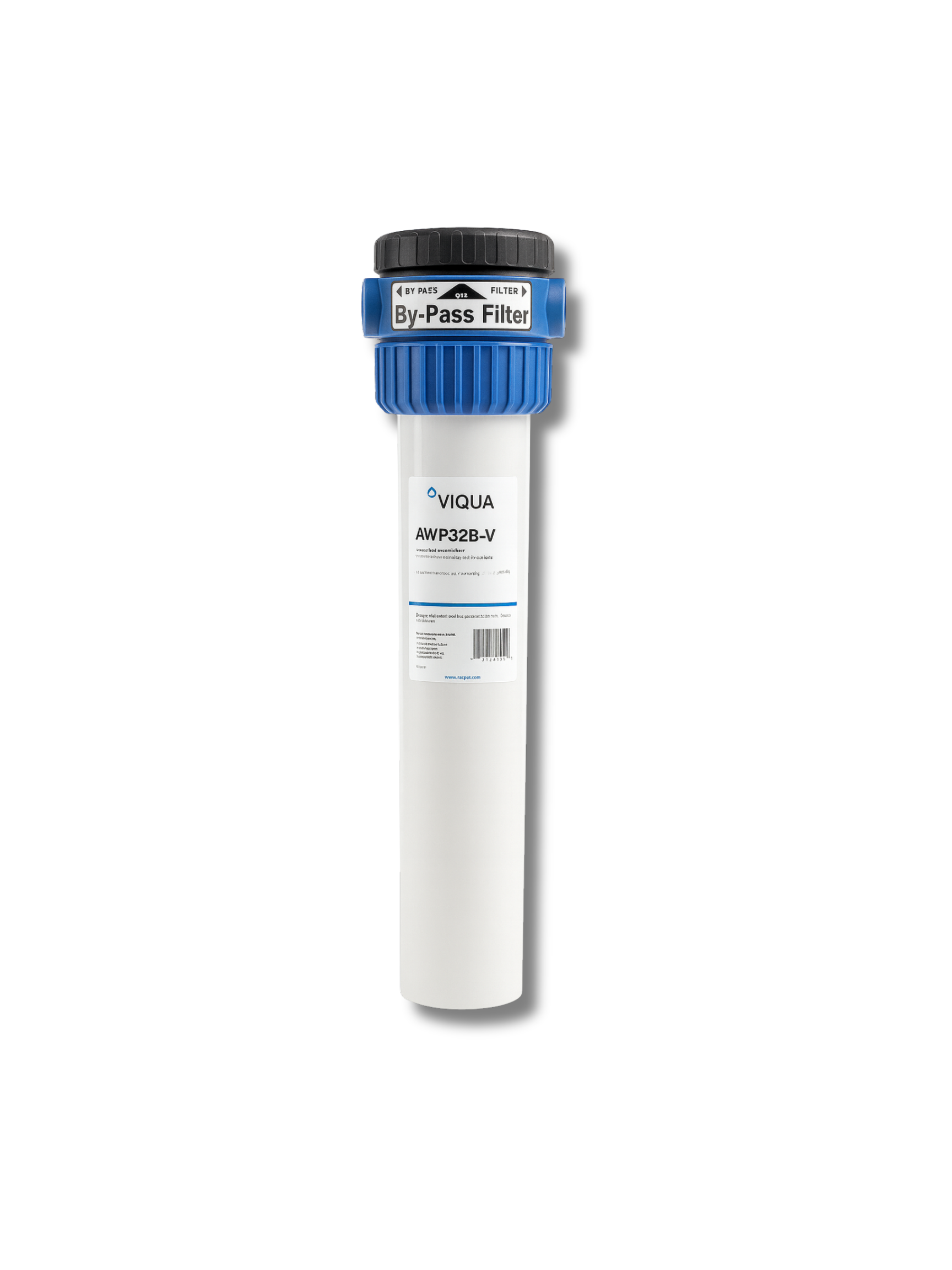

VIQUA AWP32B-V – 20" Slim Filter Housing with Valve-in-Head

The VIQUA AWP32B-V Slim Housing is a 20-inch, durable filter housing designed for standard 2.5″ × 20″ cartridges.

Its compact, slim-line construction makes it ideal for point-of-use or light whole-home filtration systems where space is limited.

Built from high-strength materials and tested to rigorous standards, this housing provides reliable protection against leaks and pressure variations.

It is suitable for use with sediment, carbon, or specialty cartridges for clean, clear, great-tasting water.

Key Features

• Slim 20″ housing for 2.5″ × 20″ standard filter cartridges

• Compact design ideal for tight installation spaces

• Durable construction for long service life

• Accepts a wide range of sediment, carbon, or specialty cartridges

• High-pressure sealing with reinforced O-ring

• Compatible with most standard ¾″ plumbing connections

• NSF/ANSI 42 certified for material and structural integrity


Specifications

• Model: AWP32B-V

• Cartridge Size: 2.5″ × 20″

• Connection Size: ¾″ FNPT inlet/outlet

• Maximum Flow Rate: ~6–8 GPM (depending on cartridge type)

• Dimensions: 4.5″ D × 22.5″ L

• Weight: Approximately 5 lb (2.3 kg)

• Operating Pressure: Cold-water line only

• Max Temperature: Up to 100 °F (38 °C)

• Certification: NSF/ANSI 42
