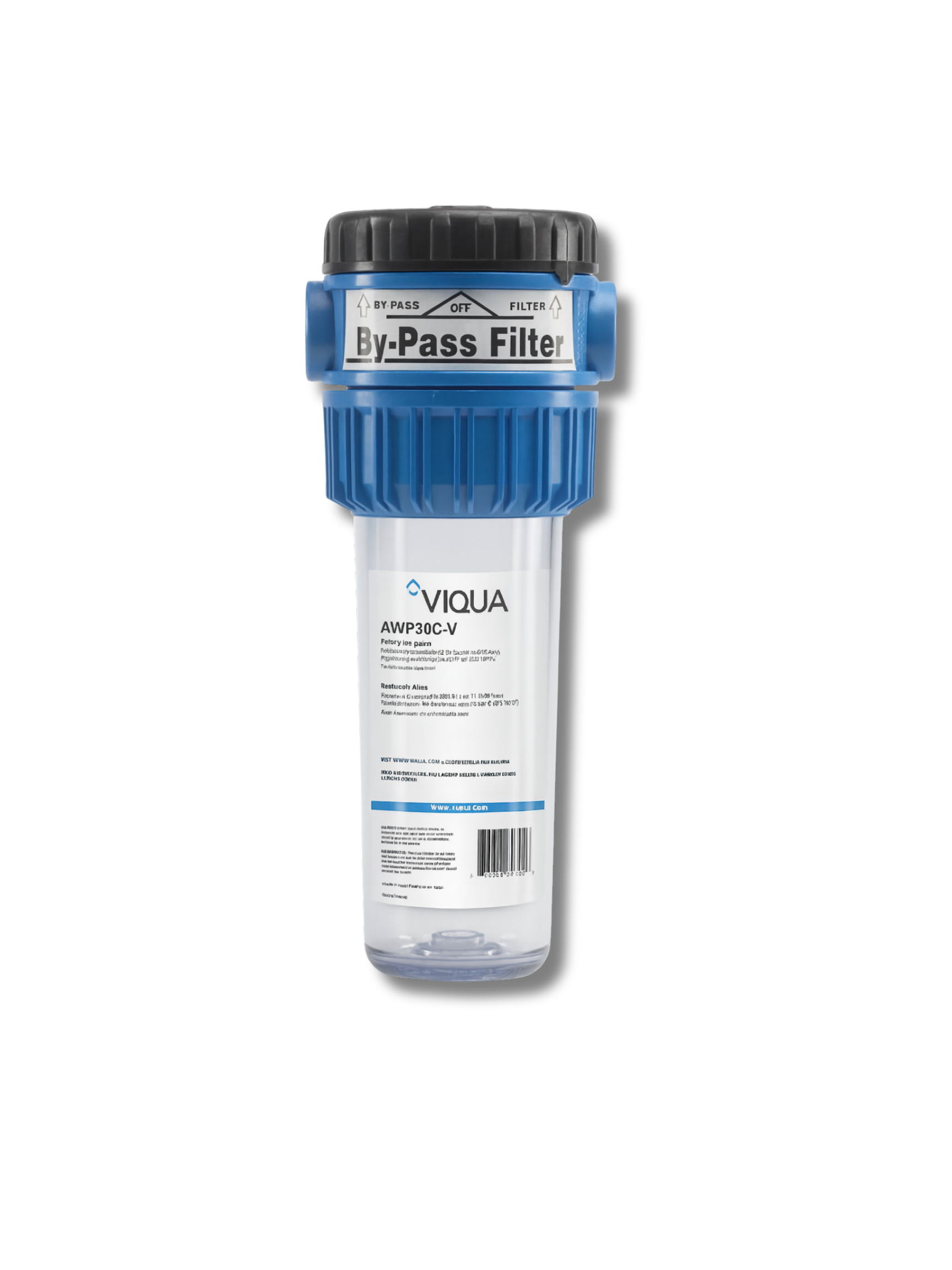

VIQUA AWP30C-V Clear Housing – 10" (Valve-in-Head)

The VIQUA AWP30C-V Clear Housing is a 10-inch, 3-piece filter housing designed for 2.5″ × 10″ standard cartridges.

Its transparent sump allows quick visual inspection of the filter cartridge, making it easy to know when a replacement is needed.

The built-in valve-in-head design provides a convenient shut-off and bypass function, allowing cartridge changes without turning off the main water supply.

This model also includes an integrated pressure relief button to make maintenance safer and smoother.

Compact and durable, the AWP30C-V is ideal for residential or light commercial cold-water filtration setups using sediment, carbon, or specialty filter cartridges.

Key Features

• Transparent housing for easy cartridge inspection

• Valve-in-head design with shut-off and bypass functions

• Integrated pressure relief button for safe servicing

• 3-piece design for improved sealing and durability

• Compatible with all standard 2.5″ × 10″ filter cartridges

• NSF/ANSI 42 certified for material and structural integrity

• Suitable for point-of-use or small whole-home cold-water filtration


Specifications

• Model: AWP30C-V

• Cartridge Size: 2.5″ × 10″

• Connection Size: ¾″ FNPT inlet/outlet

• Maximum Flow Rate: ~6 GPM (23 L/min)

• Dimensions: 4.5″ D × 11.75″ L

• Weight: Approximately 4 lb (2 kg)

• Operating Pressure: Cold-water line only

• Max Temperature: Up to 100 °F (38 °C)

• Certification: NSF/ANSI 42
