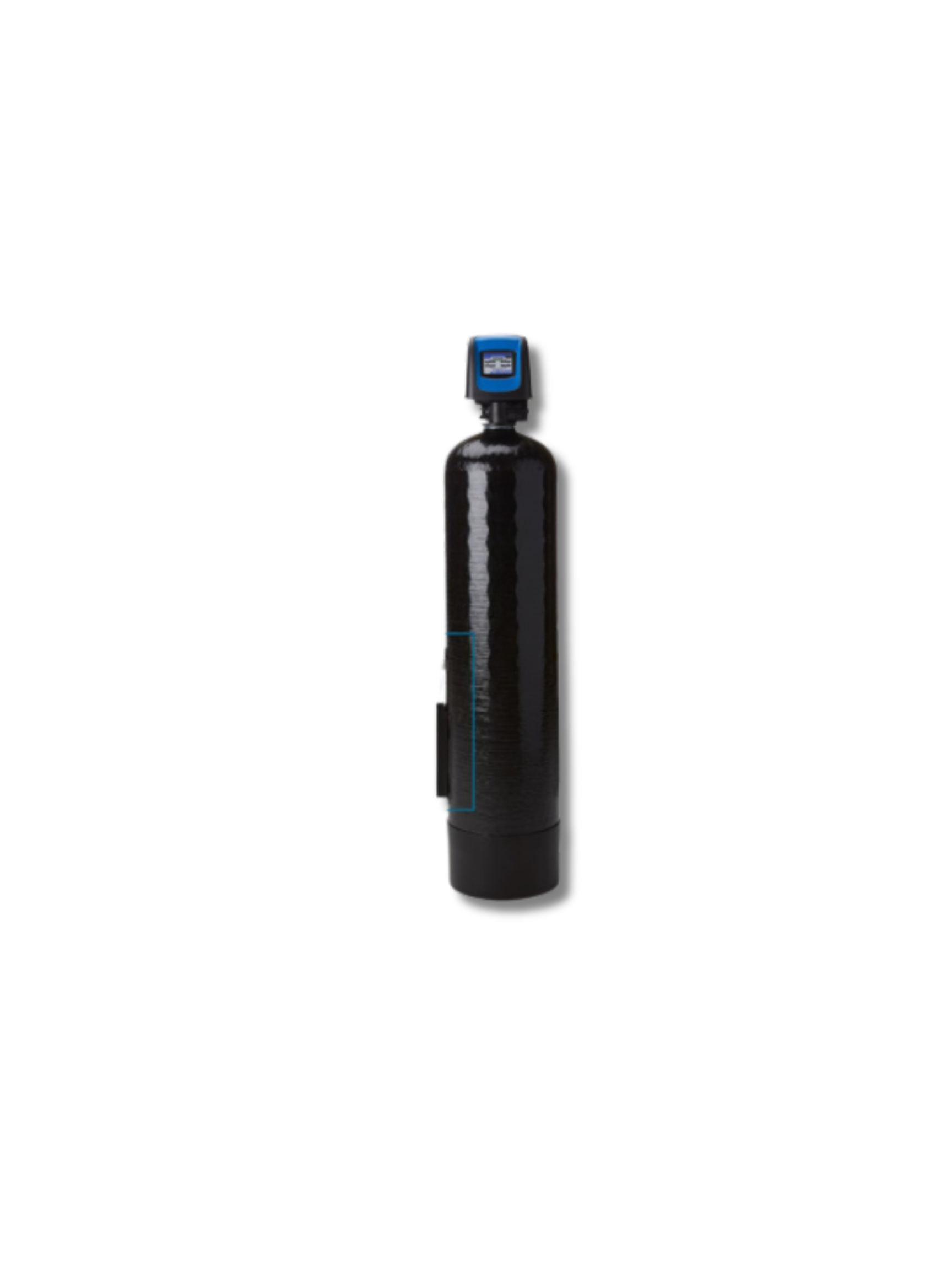

Pinnacle 60,000 Grain Water Softener — Fleck 5800 XTR2 (No AccuSense)

60,000 grain softener with the Fleck 5800 XTR2 touchscreen controller and premium SSTC-6000 resin. This model operates as a traditional metered softener without the AccuSense™ sensor for a lower price point.

• Fleck 5800 XTR2 touchscreen controller
• Premium SSTC-6000 (Purolite SST-60) resin
• On-demand metered regeneration
• Bypass valve included

Best for customers who want high capacity and the XTR2 interface, but don’t require real-time hardness sensing.

• Fleck 5800 XTR2 Touchscreen Valve – modern color display with easy setup, programming, and diagnostics

• Traditional Metered Operation – regenerates based on programmed hardness and water usage (no AccuSense sensor)

• Premium SSTC-6000 Resin – efficient Purolite resin for reliable softening performance

• High Capacity Design – built for large households or light commercial use

• Soft Water Brine Refill – cleaner brine tank, reduced maintenance

• Durable Construction – non-corrosive fiberglass mineral tank and heavy-duty brine tank with safety float

• Bypass Valve Included – simplifies installation and service

Specifications

• Model: 60K

• Grain Capacity: 60,000 grains

• Resin Volume: 2.0 cu. ft.

• Tank Size: 12″ x 52″

• Service Flow: ~10 GPM

• Peak Flow: 16 GPM

• Recommended Household: 6+ people, 4+ baths or light commercial

Pinnacle 60,000 Grain Water Softener Download
