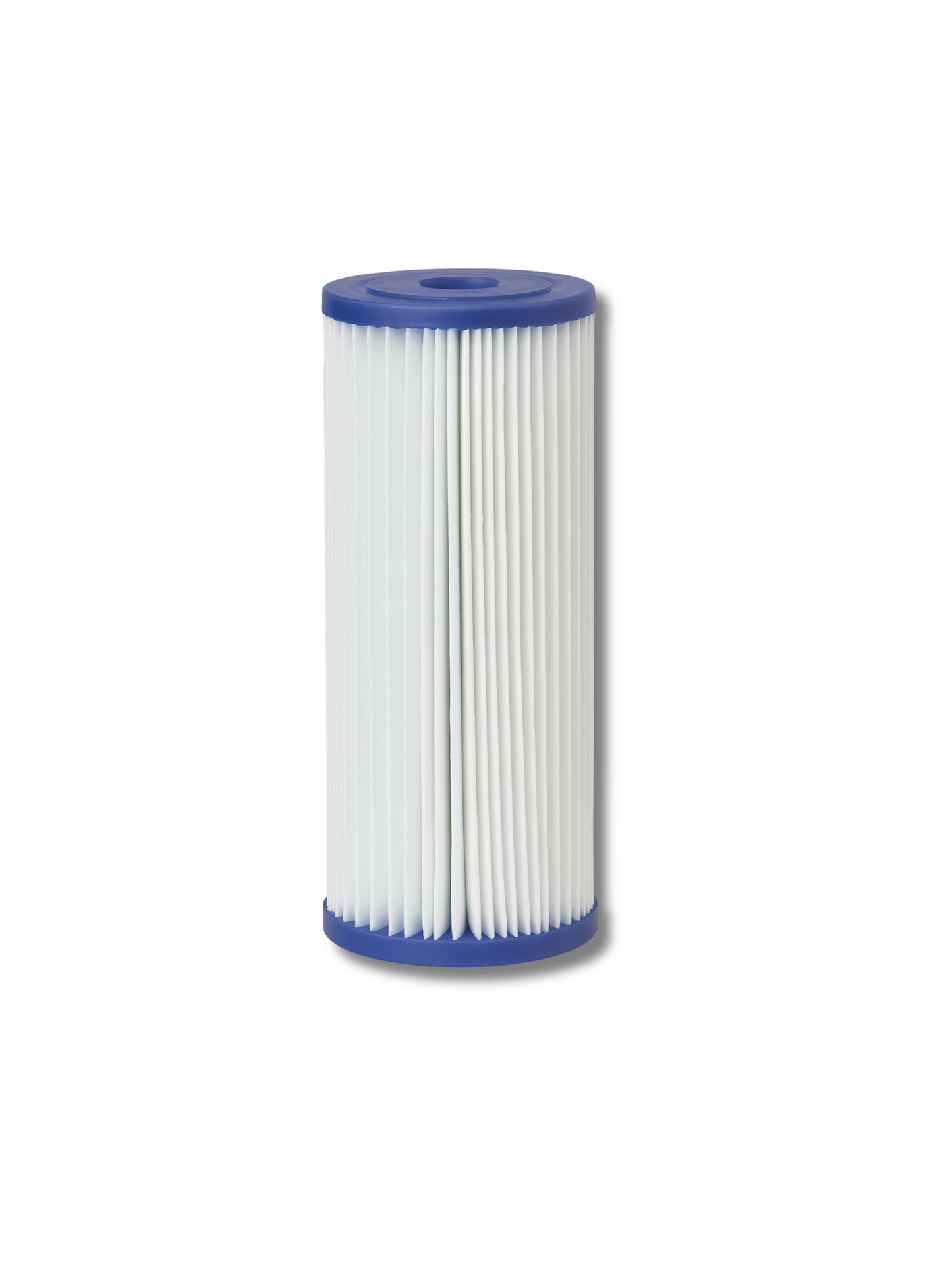

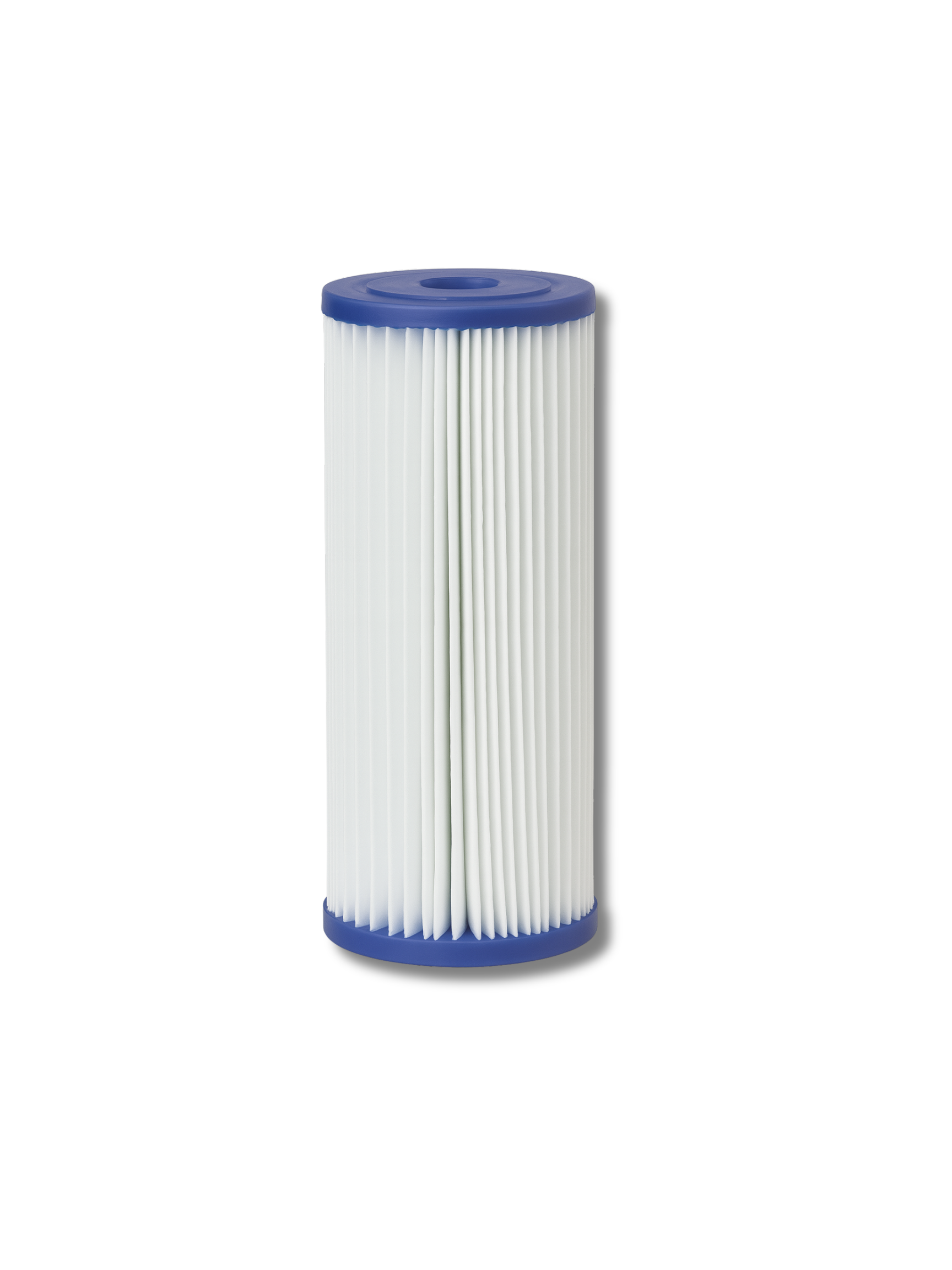

Pentek R30-BB – 10" BB 30 Micron Pleated Polyester Sediment Filter Cartridge

The Pentek R30‑BB is a 10″ Big Blue pleated polyester sediment filter cartridge with a nominal 30‑micron rating. Engineered for heavy-duty use in whole-house systems, it’s washable, reusable, and ideal for removing coarse sediment like sand, silt, rust, and scale particles.

Filter Type: Pleated polyester sediment filter

Micron Rating: 30 µm nominal

Dimensions: 9.75″ (length) × 4.5″ (outer diameter) – fits standard 10″ × 4.5″ Big Blue housings

Flow Rate & Pressure Drop: Up to 10 GPM with ~1.0 psi pressure drop

Operating Temperature: 40°F to 125°F (4.4°C to 51.7°C)

Filter Life: Up to 6 months; washable to extend life

Construction: Non‑woven polyester media over polypropylene core; vinyl‑plastisol end caps sonically welded to reduce bypass

Certifications: NSF/ANSI Standard 42 for material and structural integrity

Model Number / SKU: 155101‑43 (R30‑BB)

Fits Housings: Compatible only with 10″ × 4.5″ Big Blue filter housings (not suitable for 2.5″ housings)
